Summary

GRT intelligent dry separator is applicable to the separation of minerals such as coal mines, nonferrous metals and ferrous metals. The dry separation system is energy-saving and environment-friendly, with small floor area, short construction project and low investment cost; The system has the advantages of simple process, convenient operation and low operation cost. It has broad application prospects in replacing manual gangue selection, pre discharging gangue, reducing ash of raw coal and improving calorific value of coal.

Basic parameters of intelligent dry separation system

Optional particle size range: 10-300mm
Processing capacity: 20-400t / h
Gangue discharge accuracy: more than 90%
Conveyor belt width: 0.6-2m
Belt speed: 2.5-3.5m/s

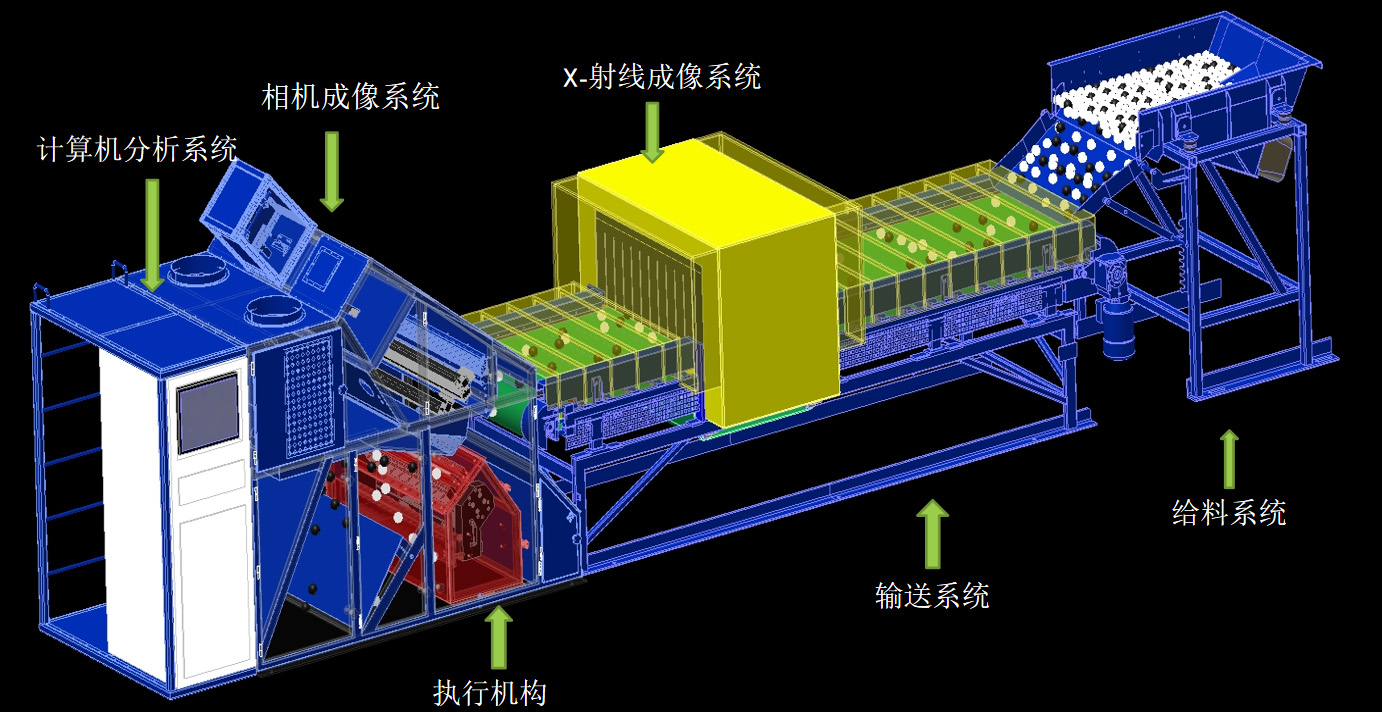

X-ray spectrum scheme

Equipment characteristics

1. Completely dry separation, without water, to avoid environmental pollution
2. Low energy consumption and high sorting accuracy
3. Low project investment cost
4. Low operation and maintenance costs
5. Simple operation and high stability

Scope of application

It is suitable for coal gangue separation in arid and severe cold areas

Instead of manual gangue selection

Replacement jig

Waste discharge in advance in Coal Preparation Plant

System efficacy

High efficiency: the one-time clean separation efficiency is up to about 90%, giving priority to the waste discharge efficiency of manual separation and moving screen jig

Low consumption: there is no other consumption except electric energy, and only one operator is required for equipment operation

Energy saving: physical separation, no medium, low power consumption

Environmental protection: the system is completely dry separation, without the intervention of water and medium, so as to avoid environmental pollution
